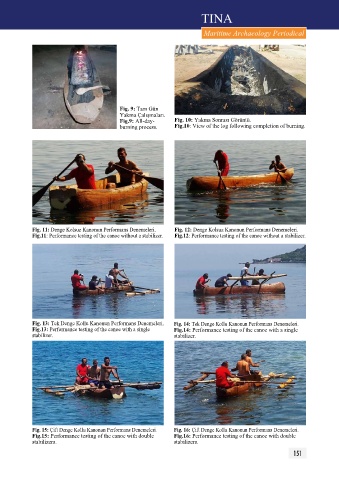

Fig. 9: Tam Gün
Yakma Çalışmaları.
Fig.9: All-day- Fig. 10: Yakma Sonrası Görüntü.
burning process. Fig.10: View of the log following completion of burning.

Fig. 11: Denge Kolsuz Kanonun performans Denemeleri. Fig. 12: Denge Kolsuz Kanonun performans Denemeleri.
Fig.11: performance testing of the canoe without a stabilizer. Fig.12: performance testing of the canoe without a stabilizer.

Fig. 13: Tek Denge Kollu Kanonun performans Denemeleri. Fig. 14: Tek Denge Kollu Kanonun performans Denemeleri.
Fig.13: performance testing of the canoe with a single Fig.14: performance testing of the canoe with a single
stabilizer. stabilizer.

Fig. 15: Çift Denge Kollu Kanonun performans Denemeleri. Fig. 16: Çift Denge Kollu Kanonun performans Denemeleri.
Fig.15: performance testing of the canoe with double Fig.16: performance testing of the canoe with double
stabilizers. stabilizers.
